Compressed gas and liquefied gas are the two most common industrial gas supply forms used in manufacturing, welding, chemical processing, and semiconductor production. Many factory managers and procurement teams often confuse these two gas storage methods. Choosing the wrong gas supply mode may lead to higher operational costs, unstable gas pressure, and potential safety hazards. This article explains the core differences between compressed gas and liquefied gas and provides a professional selection guide for industrial gas system upgrades.

1. Basic Physical State Differences

Compressed gas remains in a gaseous state inside high-pressure cylinders. It is compressed and stored under high pressure without liquid phase conversion. Typical compressed gases include bottled oxygen, nitrogen, and argon. The internal pressure can reach around 15 MPa, and the cylinder stores gas purely through high-pressure compression.

Liquefied gas is converted from gas to liquid through low-temperature cooling and pressurization. Industrial cryogenic liquids such as liquid nitrogen, liquid oxygen, liquid argon, and liquid CO2 are stored in a liquid state inside vacuum-insulated cryogenic tanks. The tank maintains a liquid-gas coexistence state, and the liquid vaporizes continuously to provide stable gas output for production.

2. Storage & Equipment Structure

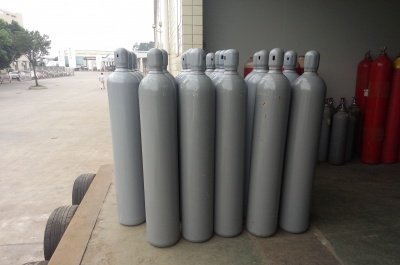

Compressed gas adopts standard high-pressure steel cylinders without thermal insulation design. The advantage is flexible movement and convenient replacement, suitable for small and intermittent gas consumption. However, the storage capacity is limited, requiring frequent cylinder replacement and causing potential production interruptions.

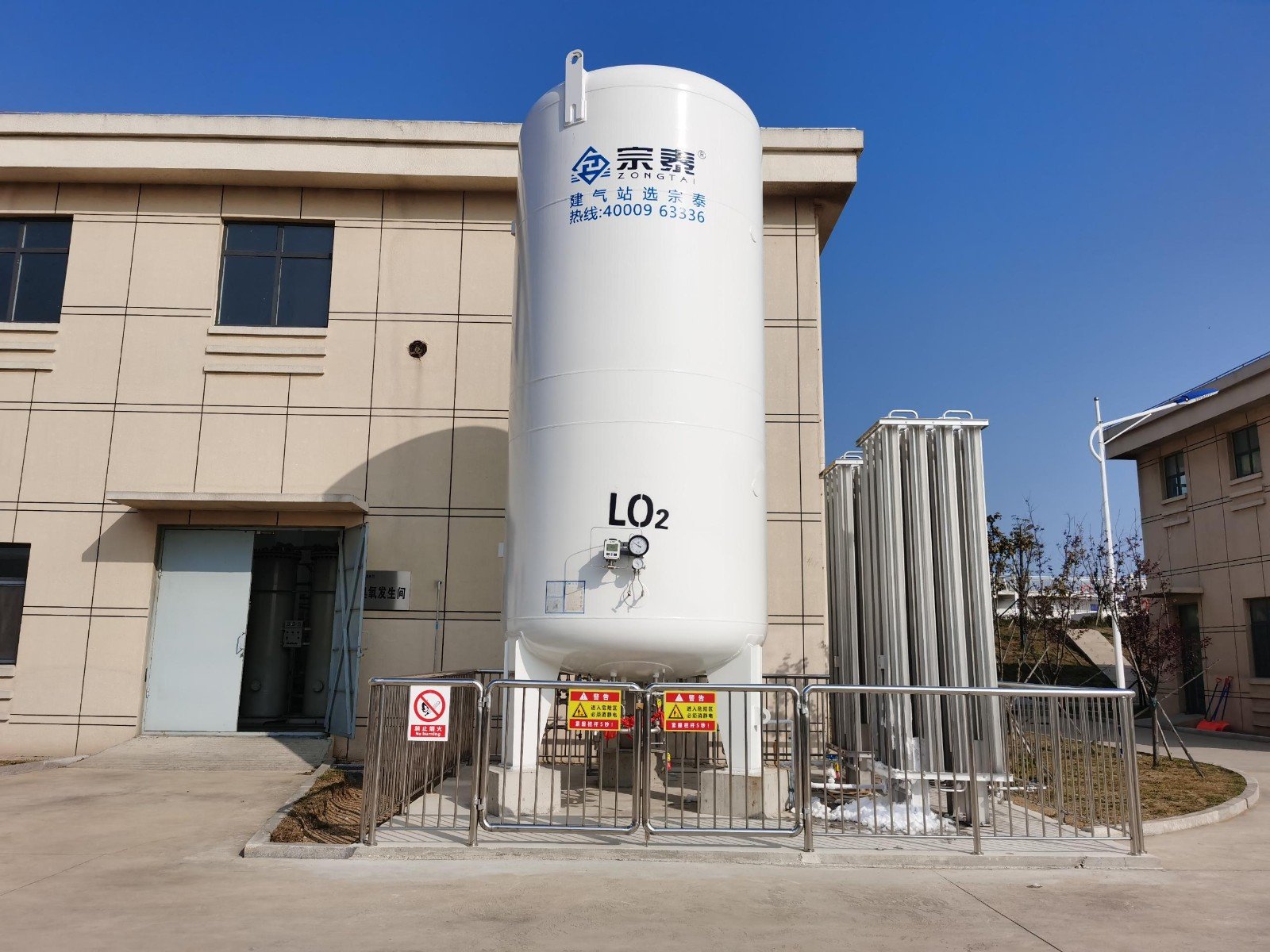

Liquefied gas requires professional cryogenic storage tanks and vaporizer systems. The vacuum insulation structure effectively reduces evaporation loss. A single 20m³ cryogenic tank can store gas equivalent to hundreds of high-pressure cylinders, making it ideal for large-scale, continuous industrial production lines.

3. Gas Supply Stability & Cost Performance

Compressed cylinder gas is suitable for low-consumption scenarios, but it has higher unit gas costs. Frequent cylinder replacement leads to unstable pressure, production downtime, and increased labor costs. Cylinder stacking also occupies valuable factory space.

Liquefied gas centralized supply systems deliver gas via tanker filling and automatic vaporization. It provides24-hour stable pressure gas supply with extremely low evaporation loss. For medium and large factories, cryogenic tank systems greatly reduce long-term gas costs and eliminate production shutdown risks caused by cylinder switching.

4. Industrial Safety Risk Differences

The main risk of compressed gas comes from high pressure. Improper handling such as collision, high-temperature exposure, and overpressure may cause cylinder safety failures. Strict fixation, ventilation, and heat source isolation are required during usage.

Liquefied gas risks focus on cryogenic frostbite and low-temperature overpressure. Ultra-low-temperature liquid may cause frostbite upon direct contact. Professional safety accessories such as safety valves, liquid level alarms, and emergency cut-off valves are essential to ensure safe and standardized operation.

5. Industrial Selection Suggestions

Choose compressed gas cylinders if your factory has low gas consumption, intermittent usage, and small production scale.

Choose liquefied gas cryogenic tank centralized supply system for large demand scenarios including steel metallurgy, precision welding, semiconductor manufacturing, food processing, and new material production, ensuring stable gas supply and lower operational costs.

Conclusion

Compressed gas stores gas by high pressure, while liquefied gas stores energy by low-temperature liquefaction. There is no absolute better solution — factories should select gas supply modes according to actual consumption, production continuity, and site conditions. Upgrading to a standardized cryogenic tank system is the most cost-effective and reliable solution for modern industrial gas supply.
